View full screen - View 1 of Lot 37. Reference 605 | A rare yellow gold world time open face watch with cloisonné enamel map of North America, Made in 1948 | 百達翡麗 型號 605 罕有黃金世界時間懷錶,飾掐絲琺瑯北美洲地圖,製作年份 1948.

Property from the Family of the Original Owner

Patek Philippe

Reference 605 | A rare yellow gold world time open face watch with cloisonné enamel map of North America, Made in 1948 | 百達翡麗 型號 605 罕有黃金世界時間懷錶,飾掐絲琺瑯北美洲地圖,製作年份 1948

Auction Closed

December 9, 06:25 PM GMT

Estimate

500,000 - 1,000,000 USD

Lot Details

Description

Property from the Family of the Original Owner

Patek Philippe


Reference 605

A rare yellow gold world time open face watch with cloisonné enamel map of North America, Made in 1948


百達翡麗 型號 605

罕有黃金世界時間懷錶,飾掐絲琺瑯北美洲地圖,製作年份 1948

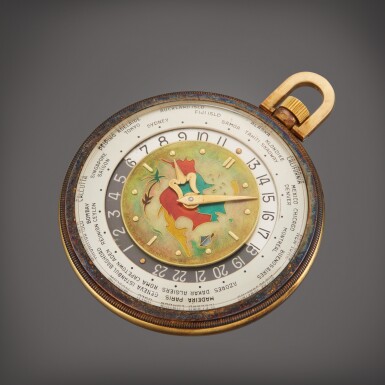

Dial: cloisonné enamel dial centre depicting a map of North America with a palm tree to the lower left and a sailboat to the right, surrounded by a two-tone revolving 24-hour ring divided into day and night hours, outermost satin finished revolving ring divided into 24-hours and marked with 41 world locations

Caliber: cal. 17-170 HU mechanical, 18 jewels

Movement number: 930'870

Case: 18k yellow gold, monogrammed snap on case back

Case number: 654'945

Size: 44 mm diameter

Signed: case, dial and movement

Box: no

Papers: no

Accessories: Patek Philippe Extract from the Archives confirming the date of sale on October 2, 1950

The Heures Universelles watches are among the most coveted of all Patek Philippe’s vintage production, and examples form the centrepiece of some of the world’s most important watch collections. Reference 605 was one of the earliest models to incorporate the ingenious world time system developed by the famed watchmaker Louis Cottier; production began in 1937 and continued for approximately thirty years, during which time less than one hundred examples were made. Research suggests that three-quarters of the Ref. 605 watches made were delivered in yellow gold cases, with just one quarter in pink gold. The model was initially produced with plain metal satin finished centres in tones of champagne, pink or silver. However, from the late 1940s, Patek Philippe began to commission a small series of richly colored cloisonné enamel dials. The cloisonné dials destined for the world time models predominantly featured ‘maps.’ These ‘maps’ were stylized views of the continents and versions included renditions of the Americas, either the North alone or North and South together, as well as larger world views such as Europe shown together with Africa and Asia or even an entire world view. Cloisonné enamel dials have long been favored by collectors for their distinctive designs and vibrant colors which, with their indelible finish, remain undimmed by the passing years. The allure of the cloisonné dial is further heightened by the fact that each is unique – being hand painted, subtle variations are inevitably made both in tonal coloration as well as by the inclusion and placement of details and motifs.


The Heures Universelles function in Ref. 605 is operated via the bezel, a mechanism shared by this and the wristwatch Ref. 1415. To set the watch up, the user simply rotates the bezel so that their current location is displayed at the twelve o’clock position, and they then advance the hands to the correct local time. The recessed 24-hour ring is geared to turn automatically as time advances, and will therefore indicate the correct time in all zones around the world. Since the case, dial and movement are all integral to the technical function of the watch, Louis Cottier supervised the production of each element. It is interesting to note that the present example, like many of Cottier's inventions, lists London and Paris on the same time zone, Greenwich Mean Time. On 15 June 1940, Paris converted to Central European time due to the war. For many years it was thought that Paris would eventually revert back to GMT, and there are Patek Philippe Heures Universelles watches and wristwatches from as late as the 1970s which still list Paris and London on the same time zone.


Louis Cottier (1894-1966) was born in Carouge and attended the Horological School of Geneva before going to work for his father and horological mentor Emmanuel Cottier (1858-1930). Like his father, Louis was a talented mechanical genius and went on to develop numerous patents that changed the face of watchmaking. Reacting to the realities of the Great Depression, Cottier saw a niche in high-end watchmaking and focused his talents on the development of complicated watches for Patek Philippe, Agassiz, Rolex, and Vacheron Constantin. Foremost among these discoveries was his development of the world time mechanism in the 1930s. This invention would inspire some of the most iconic Patek Philippe complications.


The current lot has remained in the possession of the family of the original owner since its purchase on the 2nd October 1950. Born in 1898, he was a Dartmouth graduate who serviced in both World War I & II as a distinguished Lt Commander in the US Navy. Post war, he became a significant American industrialist and philanthropist, sitting as Chairman or President of 8 cross continental manufacturing business's. An enthusiastic owner of thoroughbred horses, he retained stables in England, France and Kentucky, winning many of the most prestigious races all across the world.


Consigned directly by his family's, this has to be one the most perfectly preserved and beautiful enamel Ref 605HU to come to market in recent times. The extraordinary depth of color to the enamel map of North America is matched by exceptionally sharp case with breathtaking dark patina. Previously unknow, This is one of only 62 examples made in yellow gold, with only 27 having returned to the market.


Accompanied by its Patek Philippe Extract from the Archives showing the date of manufacture as 1948, with date of sale as October 2nd 1950.
